Alpha RT 6 ~ 10kVA (1:1)



  • Characteristics

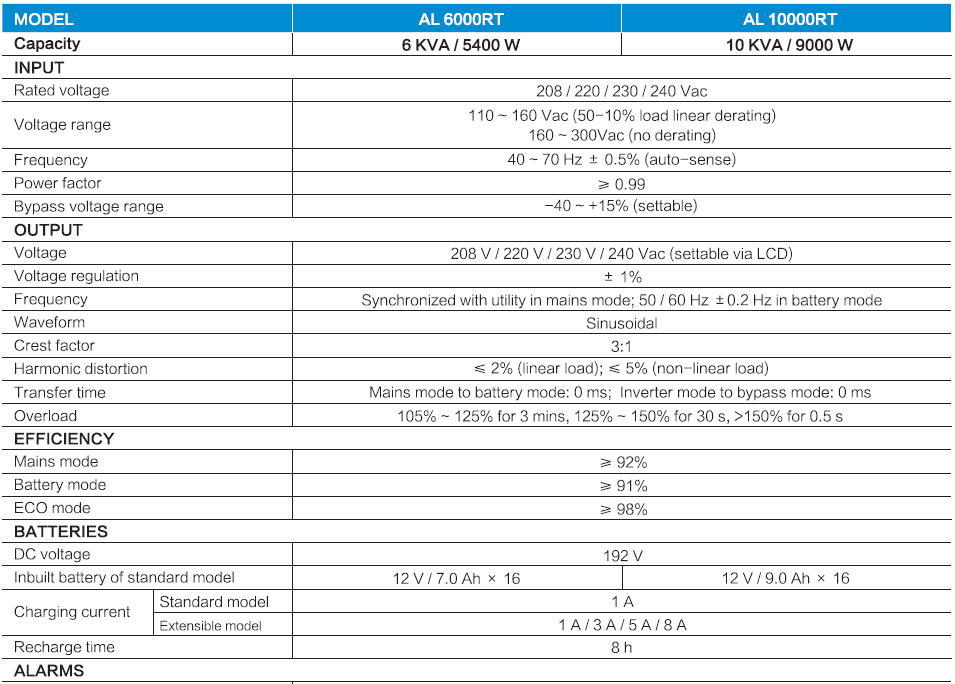

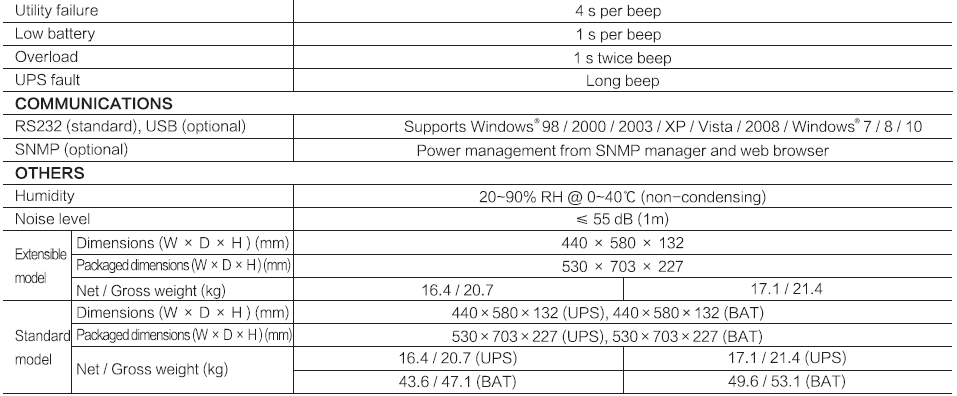

  • Technical Specifications
  • Documents
  • Options
Fitur

Rack / Tower design

  • High frequency and true double-conversion
  • DSP digital control technology


Input power factor correction (PFC)

  • Wide input voltage range (110 V ~ 300 V)
  • Output power factor 0.9


Cold start


Auto sensing frequency


ECO mode operation for energy saving


Selectable output voltage via LCD


50 Hz / 60 Hz frequency conversion mode


Selectable battery low voltage via LCD


Power-on self test


Advanced battery management (ABM)


Short circuit and overload protection


Automatic charging in OFF mode


Fan speed auto control when temperature varie


Standard RS232 communication port and RJ45 protectio


Optional USB / SNMP communication port


Optional emergency power off (EPO)


Optional extension battery bank


Optional N+X redundancy parallel


Optional external maintenance bypas
