Axiom 6 ~ 20kVA (3:1) (1:1)



  • Characteristics

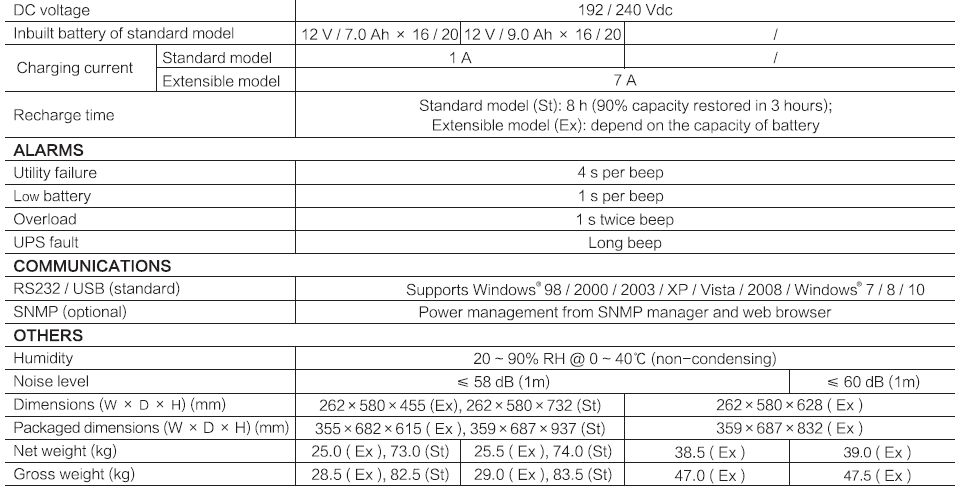

  • Technical Specifications
  • Documents
  • Options
Fitur

High frequency and true double-conversion


DSP digital control technology


Wide input voltage range (110 V ~ 300 V)


Output power factor 0.9


Optimized battery configuration: 192 V / 240 V


Cold start


Auto sensing frequency


ECO mode operation for energy saving


50 / 60 Hz frequency conversion mode


Selectable output voltage via LCD


Selectable battery shutdown voltage (EOD) via LCD


Selectable input mode via LCD (3:1 or 1:1)


Power-on self test


Advanced battery management (ABM)

Short circuit and overload protection


Automatic charging in OFF mode


Fan speed auto control when temperatures varies


Standard RS232 / USB communication port


Standard emergency power off (EPO)


Optional RS485 / SNMP / AS400 communication port


Optional extension battery bank


Optional battery temperature compensation


Optional built-in isolation transformer


Optional manual bypass


Optional N+X redundancy parallel
